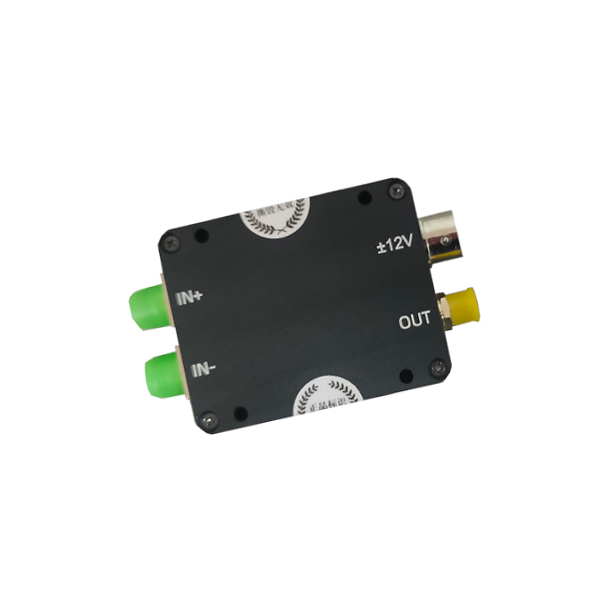

BPD465C Balanced Photodetector Module
BPD465C series，800-1700nm Fiber input 70M/200M bandwidth Balanced Photodetector Module
If you want to know the product details and prices, or If the parameters are not suitable, you can contact me for customization.
Overview
The balanced photodetector module contains two photodiodes and a low-noise transimpedance amplifier，Two of the photodiodes are matched to achieve an excellent common-mode rejection ratio，The detector differentiates the two detection signals to eliminate common-mode noise, which can obtain small changes in the effective signal from the interference noise。
Features
- Two wavelength ranges are available
- All-metal shell with excellent shielding performance
- Excellent common-mode rejection ratio
Application
- DVS/DAS
- Fiber optic sensing
- Coherent detection
- Wind radar
- OCT
Document download
Specifications
BPD465C
| BPD465C-10M | BPD465C-75M | BPD465C-200M | BPD465C-400M | BPD465C-DAS-200M | |
|---|---|---|---|---|---|
| material | InGaAs/PIN | InGaAs/PIN | InGaAs/PIN | InGaAs/PIN | InGaAs/PIN |
| Wavelength Range | 800-1700nm | 800-1700nm | 800-1700nm | 800-1700nm | 800-1700nm |
| Optical Input | FC/APC | FC/APC | FC/APC | FC/APC | FC/APC |
| Responsiveness | 0.9A/W @ 1550 nm | 0.9A/W @ 1550 nm | 0.9A/W @ 1550 nm | 0.9A/W @ 1550 nm | 0.9A/W @ 1550 nm |
| Common-mode rejection ratio | >26dB | >25dB | >25dB | >25dB | >25dB |
| RF Bandwidth | DC-10MHz | DC-75MHz | DC-200MHz | DC-400MHz | DC-200MHz |
| RF Rise Time @50Ω | 40ns | 5ns | 1.8ns | 1.0ns | 1.8ns |
| RF Gain | 300kV/A | 30kV/A | 18.6kV/A | 4.5kV/A | 80kV/A |
| Minimum optical power @1550nm | -54.2dBm (3.76nw) | -39.0dBm (0.13uw) | -33dBm (0.5uw) | -29dBm (1.25uw) | -35dBm (0.32uw) |
| Saturated optical power @1550nm | -22dBm (6.25uw) | -14.2dBm (37.6uw) | -7.4dBm (180uw) | -1.36dBm (730uw) | -15.6dBm (27.8uw) |
| Noise voltage @50Ω | <18mVpp | <20mVpp | <18mVpp | <10mVpp | <30mVpp |
| RF Output impedance | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| RF output amplitude @50Ω | ±2.0V | ±2.0V | ±2.0V | ±2.0V | ±1.0V |
| Operating voltage | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% |
| Operating current | <200mA | <200mA | <200mA | <200mA | <200mA |
| Output connector | SMA | SMA | SMA | SMA | SMA |
| Operating temperature | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ |
| Storage temperature | -40~85℃ | -40~85℃ | -40~85℃/td> | -40~85℃ | -40~85℃ |
| Dimensions | 90mm x 60mm x 22mm（L x W x D, without connectors） | 90mm x 60mm x 22mm（L x W x D, without connectors） | 90mm x 60mm x 22mm（L x W x D, without connectors） | 90mm x 60mm x 22mm（L x W x D, without connectors） | 90mm x 60mm x 22mm（L x W x D, without connectors） |
| Item | BPD465A-10M | BPD465A-75M | BPD465A-200M | BPD465A-400M |
|---|---|---|---|---|
| Materials | Si/PIN | Si/PIN | Si/PIN | InGaAs/PIN |
| Wavelength | 400-1100nm | 400-1100nm | 400-1100nm | 400-1100nm |
| Input Connector | FC/APC | FC/APC | FC/APC | FC/APC |
| Responsiveness | 0.45A/W @ 780 nm | 0.45A/W @ 780 nm | 0.45A/W @ 780 nm | 0.45A/W @ 780 nm |
| Common mode rejection ratio | >25dB | >25dB | >25dB | >25dB |
| RF Bandwidth | DC-10MHz | DC-75MHz | DC-200MHz | DC-400MHz |
| RF rise time @50Ω load | 40ns | 5ns | 1.8ns | 1.0ns |
| RF Gain | 300kV/A | 30kV/A | 18.6kV/A | 4.5kV/A |
| Minimum optical power@780nm | -51.2dBm (7.94nw) | -36.0dBm (0.25uw) | -30.6dBm (0.88uw) | -26.0dBm (2.5uw) |
| Saturated optical power@780nm | -19dBm (12.5uw) | -11.2dBm (75.9uw) | -3.98dBm (400uw) | -2.3dBm (1.7mw) |
| Noise voltage@50Ω | <20mVpp | <22mVpp | <20mVpp | <12mVpp |
| RF Output Impedance | 50Ω | 50Ω | 50Ω | 50Ω |
| RF output swing @50Ω load | ±2.0V | ±2.0V | ±2.0V | ±2.0V |
| Work Voltage | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% | 12VDC ±10% |
| Work current | <200mA | <200mA | <200mA | <200mA |
| Output connector | SMA | SMA | SMA | SMA |
| Work temperature | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ |
| Storage temperature | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ |
| Dimension | 90mm x 60mm x 22mm | 90mm x 60mm x 22mm | 90mm x 60mm x 22mm | 90mm x 60mm x 22mm |
Screenshot of the balance detector test
Balance the detector noise（峰峰值17.33mV）
Balance detector application example: DAS system
Balance detector application example: DAS system
Balance detector application example: DAS system

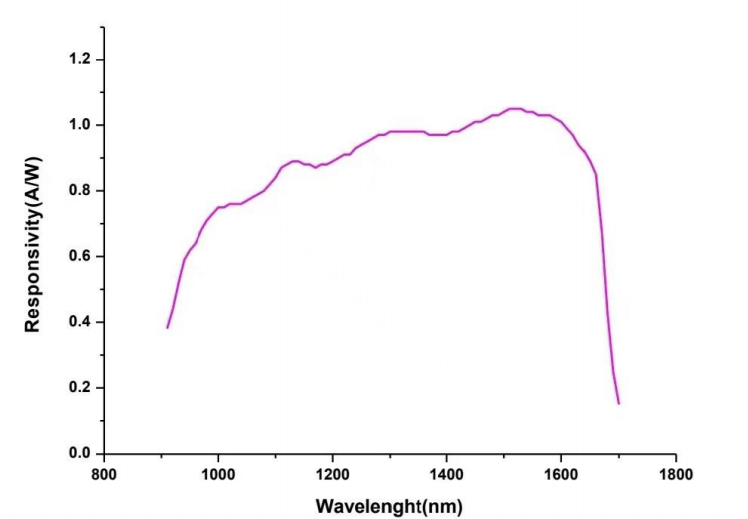

Response curve

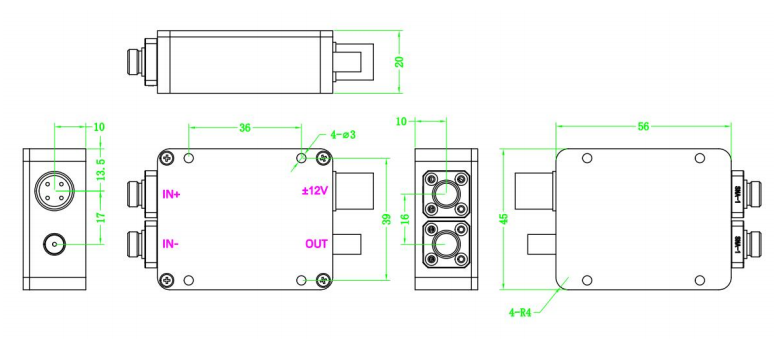

Mechanical dimensions
