红外光电二极管-NIR2200D1N1

红外光电二极管（裸管），响应波长：900-2600nm，具有体积小、灵敏度高、暗电流低等特点。

描述 Description

NIR2200D1N1 photodiode is ideal for measuring both pulsed and CW fiber light sources by converting optical power into electrical current. The detector is in a TO-46 package with an anode, cathode, and case connection. The photodiode anode produces a current, which is a function of the incident light power and the wavelength. The responsivity, Ը(λ), can be read from the plot on the following page to estimate the amount of photocurrent. This can be converted to a voltage by placing a load resistor, (RL), from the photodiode anode to the circuit ground.

特性 Features

TO-46 metal housing
High responsivity and low dark current

应用 Applications

Optical power meters
Gas analysis
Moisture meters

下载 Download

NIR2200D1N1.pdf

规格 Specifications

Parameter	Symbol	Value	Unit
Wavelength of peak responsivisity	λmax	2200	nm
Peak responsivisity (at 2200)	λP	1.35	A/W
Spectral response range		900~2600	nm
Chip size	A	1	mm²
Dark current (V=-0.2V)	ID	10.00	µA
Dark current (V=-0.5V)	ID	15.00	µA
Dark current (V=-1.0V)	ID	35.00	µA
Capacitance (V =-1V, f =1MHz）	C	240	pF
Detectivity（λ=λP）	D*	9×10¹⁰	cm·Hz^1/2/W
Noise equivalent power(Vat D*)	NEP	1×10^-12	W/Hz^1/2
Operation temperature range	Topt	-40~85	℃
Storage temperature range	Tstor	-40~125	℃
Soldering temperature (3 s)	Tsold	260	℃
Reverse voltage	VRmax	-1V	V

光谱响应 Spectral response

红外光电二极管响应曲线

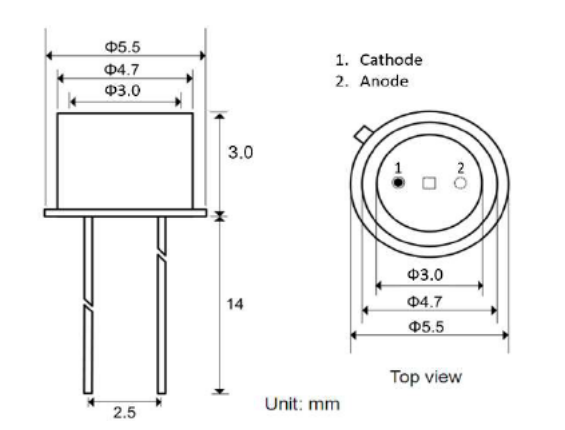

封装尺寸 Package dimensions

红外光电二极管机械图纸
